Hot Meal Sampler

Hot Meal Sampler

EQUIPMENT DESIGNED TO AUTOMATICALLY SAMPLE AT THE BOTTOM OF THE PRECALCINER Integrated quenching system designed to froze the decarbonation reaction, and therefore make sure there is no further loss of CO2 This PC 303 sampler is designed to collect hot meal from underneath the last stage of cyclones of the precalciner.

More info Gallery
More info

EQUIPMENT DESIGNED TO AUTOMATICALLY SAMPLE AT THE BOTTOM OF THE PRECALCINER

Integrated quenching system designed to froze the decarbonation reaction, and therefore make sure there is no further loss of CO2

This PC 303 sampler is designed to collect hot meal from underneath the last stage of cyclones of the precalciner.

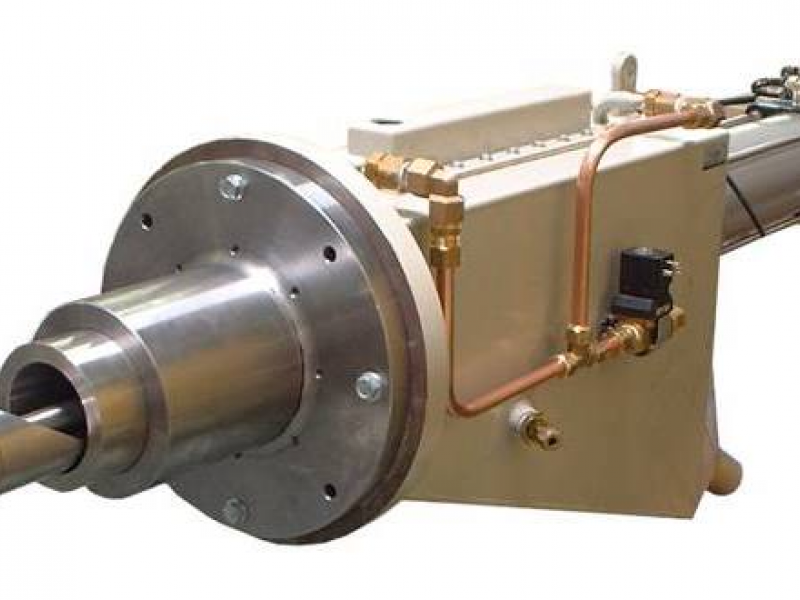

As a sampling equipment, it is composed of a sampling head made in refractory steel, a driving jack, a sampling chamber closing device, several compressed air ports used to clean the sampling head and a collecting hopper.

A quenching system composed of a screw conveyor (length: 800 mm) and a cooling fan with a silencer is associated to the sampler.
